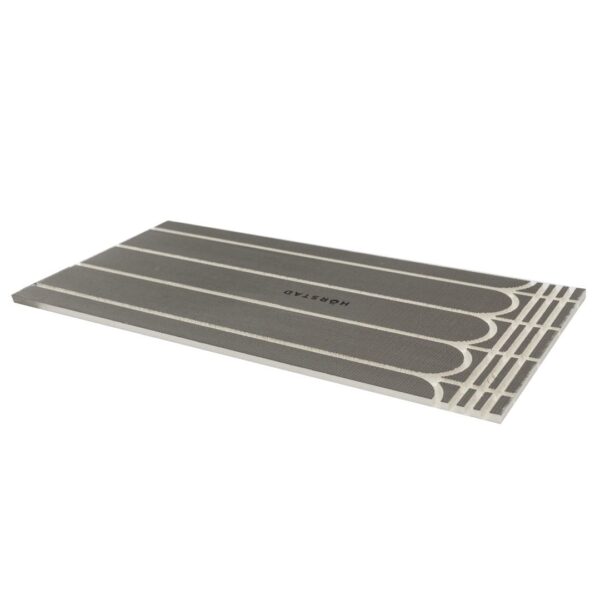

HÖRSTAD Cement Coated UFH Overlay Panels are routed underfloor heating panels manufactured from high-density XPS insulation, providing excellent thermal performance while remaining lightweight and fully waterproof. Each board is finished with a reinforced cement coating, creating a strong, stable surface suitable for direct floor finishes.
The pre-routed grooves ensure consistent pipe placement and efficient heat distribution throughout the floor area.
The boards must be installed onto a flat, level subfloor, whether concrete or timber-based. On concrete substrates, they should be laid over a combed layer of flexible tiling adhesive. For timber floors, the panels are secured using screws and washers. Tiles and wood flooring can be installed directly over the system, while softer finishes such as carpet or vinyl require an additional 9mm board layer prior to the final floor covering.
Ideal for retrofit and renovation projects, HÖRSTAD Cement Coated UFH Overlay Panels offer a low-profile, durable solution for modern underfloor heating installations.
| Mean Water Temp (OC) | Pipe Diameter (mm) | Pipe Spacing (mm) | Output W/m2 (with 10mm thick Porcelain Tiles and 3mm adhesive bed) | Output W/m2 (with 15mm thick Oak Flooring) | Output W/m2 (with 10mm Carpet, Underlay and Levelling screed)) |
| 40.5 | 16 | 150 | 105 | 60 | 53 |
| 45.5 | 12 | 150 | 135 | 77 | 69 |
| 50.5 | 12 | 150 | 165 | 94 | 85 |
