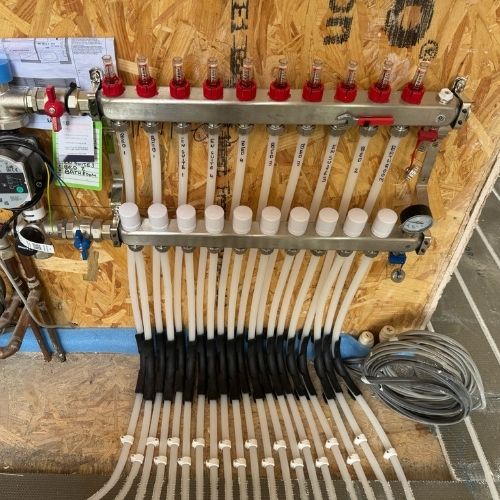

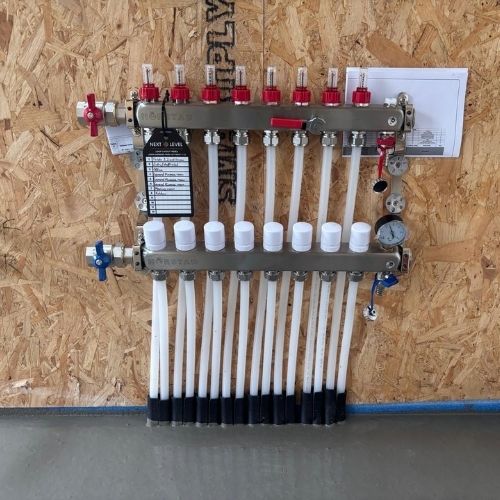

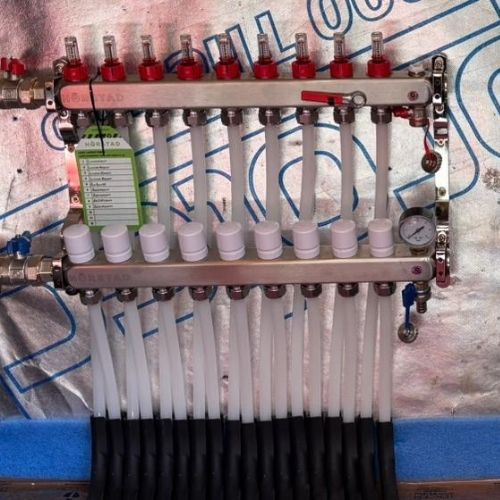

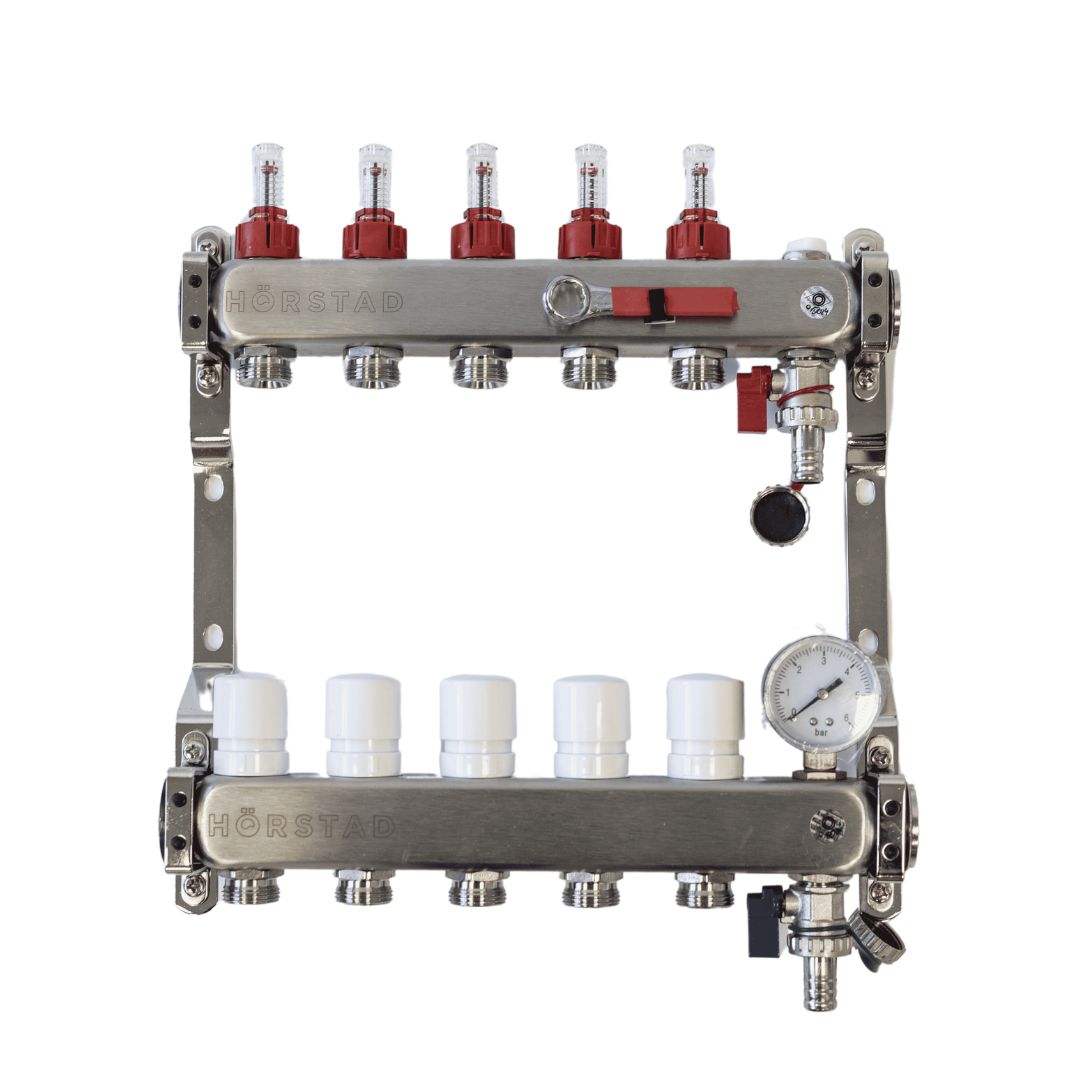

The HÖRSTAD Underfloor heating distribution manifold is the central control hub of any wet UFH system, distributing warm water efficiently to each heating zone. Connecting the underfloor heating pipework to the heat source, it ensures water is supplied at the correct temperature from either a boiler or heat pump via a blending valve.
Designed for multi-zone control, the manifold allows individual rooms to be managed independently through their own thermostats. Each return loop features a valve controlled by an actuator, responding directly to the thermostat’s call for heat to deliver precise comfort and energy efficiency.
For ease of maintenance, every flow meter can be individually shut off for removal and cleaning without draining or dismantling the entire system. A dedicated spanner is included to simplify servicing on site.
Recommended minimum installation clearances:
- 200mm between finished floor level and bottom of manifold
- 100mm above the manifold
- 50mm to either side
- Allow an additional 100mm for supply pipework
Durable, corrosion-resistant, and built for professional installations, the HÖRSTAD Underfloor heating distribution manifold provides reliable, long-term performance at the heart of your underfloor heating system.
