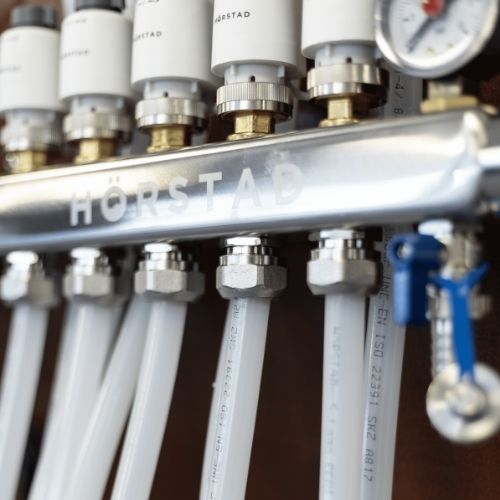

Each manifold port requires one connector per flow and one per return pipe. For example: a 10 port manifold requires 20 connectors.
The manifold connectors are required to join PE-RT pipe to the manifold for use with wet underfloor heating. We stock different size connectors to suit 12mm, 16mm and 20mm pipe.
Manifold connectors consist of:
- 1/2″ – 3/4″ Nipples
- 3/4″ Compression fittings for pipe
PEX 16 x2/12 x 2/20 x 2
Product dimensions: 18mm x 30mm x 30mm
Technical data:
- Max. working pressure: 1.0 Mpa
- Max. operating temperature: +95°C
